high quality breeder farm construction project water dropping line butcher equipment

Place of Origin : Jiangsu, China

Brand Name : CONNECT

Certification : CE

MOQ : "1 Set/Sets"

Contact Now

high quality breeder farm construction project water dropping line butcher equipment

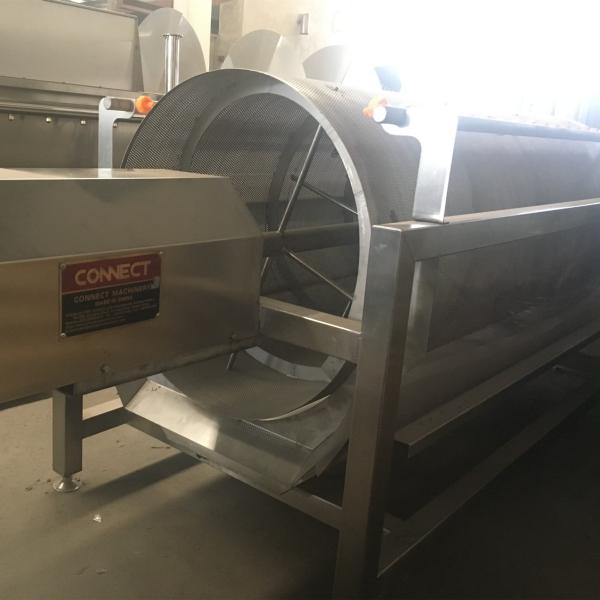

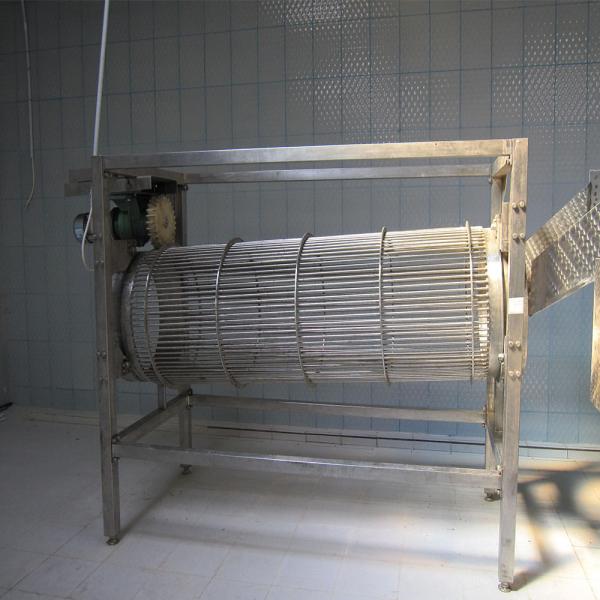

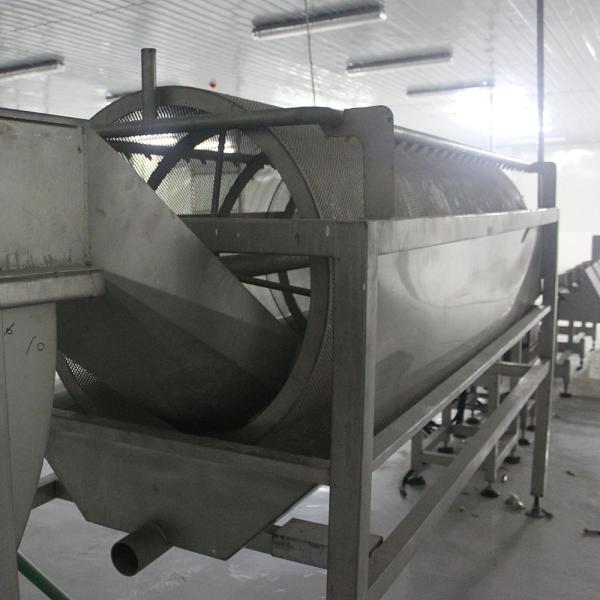

CONNECT Feather, Viscera & Water separator is used for separator water from poultry processing plant waste of feather and viscera
which is ready for delivery to rendering plant to make protein meal.
The feather or offals which just pump or transported from abattoir full with water, after separation, the water contains decreased
to about 80%.

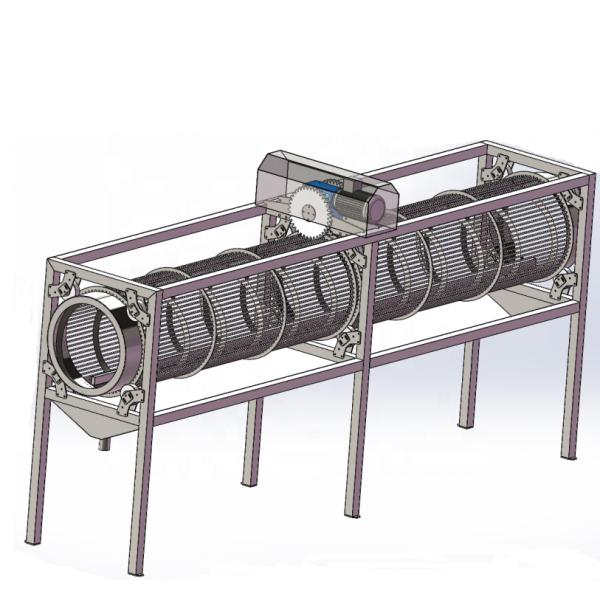

The machine is full made of stainless steel, with stainless steel box frame, and rotating screen drum, the machine is drived by
motor.
The Waste water inside collected and drainage into waste water treatment tank.
The main parameters are:
high quality breeder farm construction project water dropping line butcher equipment
SQ
NAME.
SPECIFICATION
1
motor reducer model
TXF005/XWD2-17-0.37KW
2
Bearing model
1205
3
Bearing holder model
1505
4
Working voltage
220-440V +/-10%
5
 Frequency
50-60HZ
6
Working capacity
1000kg/H
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
The Notes and maintenance
1. Adjust the level of equipment when placed at site to be sure that legs all landing with force
2. No switch of adjusting button when it power off
3. Frequently checking the working conditions of motor reducer
4. Regularly refueling gear
5. Cleaning the equipment after each day off, take notice of motor which is water proof.

The chicken feather water seperator can be used in poultry slaughterhouse directly before feather transported to Rendering Plant,
similar can be used as offal water separator in poultry slaughterhouse
Also can be sued in rendering plant, if the feather and other waste from poultry slaughterhouse is transported by pump system,
which will transferring with water, so before these these feed into Batch Cooker , the water feather separator will be used to move
parts of water from raw material.
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
Recommended by seller
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
high quality breeder farm construction project water dropping line butcher equipment
1. how many types of chickens can it be processed? A: It can process broiler ,layers, quails,goose,ducks and pigeon. 2.what is the capacity of this line? A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line. 3.can it be process different weight of birds? A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds. 4.Can you design and install the project for us? A:We have good design and installation department for help you on this project. 5.What is the differences from Manual EV line to Automatic EV line? A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almostly same birds. 6.What is the differences from screw chiller to air chiller? A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller and ice flaker for cooling the normal water into cold water, its ok for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses. 7.How is Connect Group?
A: Connect Group is a company in China, which have his own trademark, Our group totally have seven companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market. 8: Why we select Connect Group? A:Connect Group is with the best service for the clients..Can you design and install the project for us?
